Book VI, Proposition 28

To a given straight line to apply a parallelogram equal to a given rectilineal figure and deficient by a parallelogrammic figure similar to a given one : thus the given rectilineal figure must not be greater than the parallelogram described on the half of the straight line and similar to the defect.

Παρὰ τὴν δοθεῖσαν εὐθεῖαν τῷ δοθέντι εὐθυγράμμῳ ἴσον παραλληλόγραμμον παραβαλεῖν ἐλλεῖπον εἴδει παραλληλογράμμῳ ὁμοίῳ τῷ δοθέντι: δεῖ δὲ τὸ διδόμενον εὐθύγραμμον [ ᾧ δεῖ ἴσον παραβαλεῖν ] μὴ μεῖζον εἶναι τοῦ ἀπὸ τῆς ἡμισείας ἀναγραφομένου ὁμοίου τῷ ἐλλείμματι [ τοῦ τε ἀπὸ τῆς ἡμισείας καὶ ᾧ δεῖ ὅμοιον ἐλλείπειν ]. Ἔστω ἡ μὲν δοθεῖσα εὐθεῖα ἡ ΑΒ, τὸ δὲ δοθὲν εὐθύγραμμον, ᾧ δεῖ ἴσον παρὰ τὴν ΑΒ παραβαλεῖν, τὸ Γ μὴ μεῖζον [ ὂν ] τοῦ ἀπὸ τῆς ἡμισείας τῆς ΑΒ ἀναγραφομένου ὁμοίου τῷ ἐλλείμματι, ᾧ δὲ δεῖ ὅμοιον ἐλλείπειν, τὸ Δ: δεῖ δὴ παρὰ τὴν δοθεῖσαν εὐθεῖαν τὴν ΑΒ τῷ δοθέντι εὐθυγράμμῳ τῷ Γ ἴσον παραλληλόγραμμον παραβαλεῖν ἐλλεῖπον εἴδει παραλληλογράμμῳ ὁμοίῳ ὄντι τῷ Δ. Τετμήσθω ἡ ΑΒ δίχα κατὰ τὸ Ε σημεῖον, καὶ ἀναγεγράφθω ἀπὸ τῆς ΕΒ τῷ Δ ὅμοιον καὶ ὁμοίως κείμενον τὸ ΕΒΖΗ, καὶ συμπεπληρώσθω τὸ ΑΗ παραλληλόγραμμον. Εἰ μὲν οὖν ἴσον ἐστὶ τὸ ΑΗ τῷ Γ, γεγονὸς ἂν εἴη τὸ ἐπιταχθέν: παραβέβληται γὰρ παρὰ τὴν δοθεῖσαν εὐθεῖαν τὴν ΑΒ τῷ δοθέντι εὐθυγράμμῳ τῷ Γ ἴσον παραλληλόγραμμον τὸ ΑΗ ἐλλεῖπον εἴδει παραλληλογράμμῳ τῷ ΗΒ ὁμοίῳ ὄντι τῷ Δ. εἰ δὲ οὔ, μεῖζον ἔστω τὸ ΘΕ τοῦ Γ. ἴσον δὲ τὸ ΘΕ τῷ ΗΒ: μεῖζον ἄρα καὶ τὸ ΗΒ τοῦ Γ. ᾧ δὴ μεῖζόν ἐστι τὸ ΗΒ τοῦ Γ, ταύτῃ τῇ ὑπεροχῇ ἴσον, τῷ δὲ Δ ὅμοιον καὶ ὁμοίως κείμενον τὸ αὐτὸ συνεστάτω τὸ ΚΛΜΝ. ἀλλὰ τὸ Δ τῷ ΗΒ [ ἐστιν ] ὅμοιον: καὶ τὸ ΚΜ ἄρα τῷ ΗΒ ἐστιν ὅμοιον. ἔστω οὖν ὁμόλογος ἡ μὲν ΚΛ τῇ ΗΕ, ἡ δὲ ΛΜ τῇ ΗΖ. καὶ ἐπεὶ ἴσον ἐστὶ τὸ ΗΒ τοῖς Γ, ΚΜ, μεῖζον ἄρα ἐστὶ τὸ ΗΒ τοῦ ΚΜ: μείζων ἄρα ἐστὶ καὶ ἡ μὲν ΗΕ τῆς ΚΛ, ἡ δὲ ΗΖ τῆς ΛΜ. κείσθω τῇ μὲν ΚΛ ἴση ἡ ΗΞ, τῇ δὲ ΛΜ ἴση ἡ ΗΟ, καὶ συμπεπληρώσθω τὸ ΞΗΟΠ παραλληλόγραμμον: ἴσον ἄρα καὶ ὅμοιόν ἐστι [ τὸ ΗΠ ] τῷ ΚΜ [ ἀλλὰ τὸ ΚΜ τῷ ΗΒ ὅμοιόν ἐστιν ]. καὶ τὸ ΗΠ ἄρα τῷ ΗΒ ὅμοιόν ἐστιν: περὶ τὴν αὐτὴν ἄρα διάμετρόν ἐστι τὸ ΗΠ τῷ ΗΒ. ἔστω αὐτῶν διάμετρος ἡ ΗΠΒ, καὶ καταγεγράφθω τὸ σχῆμα. Ἐπεὶ οὖν ἴσον ἐστὶ τὸ ΒΗ τοῖς Γ, ΚΜ, ὧν τὸ ΗΠ τῷ ΚΜ ἐστιν ἴσον, λοιπὸς ἄρα ὁ ΥΧΦ γνώμων λοιπῷ τῷ Γ ἴσος ἐστίν. καὶ ἐπεὶ ἴσον ἐστὶ τὸ ΟΡ τῷ ΞΣ, κοινὸν προσκείσθω τὸ ΠΒ: ὅλον ἄρα τὸ ΟΒ ὅλῳ τῷ ΞΒ ἴσον ἐστίν. ἀλλὰ τὸ ΞΒ τῷ ΤΕ ἐστιν ἴσον, ἐπεὶ καὶ πλευρὰ ἡ ΑΕ πλευρᾷ τῇ ΕΒ ἐστιν ἴση: καὶ τὸ ΤΕ ἄρα τῷ ΟΒ ἐστιν ἴσον. κοινὸν προσκείσθω τὸ ΞΣ: ὅλον ἄρα τὸ ΤΣ ὅλῳ τῷ ΦΧΥ γνώμονί ἐστιν ἴσον. ἀλλ' ὁ ΦΧΥ γνώμων τῷ Γ ἐδείχθη ἴσος: καὶ τὸ ΤΣ ἄρα τῷ Γ ἐστιν ἴσον. Παρὰ τὴν δοθεῖσαν ἄρα εὐθεῖαν τὴν ΑΒ τῷ δοθέντι εὐθυγράμμῳ τῷ Γ ἴσον παραλληλόγραμμον παραβέβληται τὸ ΣΤ ἐλλεῖπον εἴδει παραλληλογράμμῳ τῷ ΠΒ ὁμοίῳ ὄντι τῷ Δ [ ἐπειδήπερ τὸ ΠΒ τῷ ΗΠ ὅμοιόν ἐστιν ]: ὅπερ ἔδει ποιῆσαι. To a given straight line to apply a parallelogram equal to a given rectilineal figure and deficient by a parallelogrammic figure similar to a given one : thus the given rectilineal figure must not be greater than the parallelogram described on the half of the straight line and similar to the defect. Let AB be the given straight line, C the given rectilineal figure to which the figure to be applied to AB is required to be equal, not being greater than the parallelogram described on the half of AB and similar to the defect, and D the parallelogram to which the defect is required to be similar; thus it is required to apply to the given straight line AB a parallelogram equal to the given rectilineal figure C and deficient by a parallelogrammic figure which is similar to D. Let AB be bisected at the point E, and on EB let EBFG be described similar and similarly situated to D; [VI. 18] let the parallelogram AG be completed. If then AG is equal to C, that which was enjoined will have been done; for there has been applied to the given straight line AB the parallelogram AG equal to the given rectilineal figure C and deficient by a parallelogrammic figure GB which is similar to D. But, if not, let HE be greater than C. Now HE is equal to GB; therefore GB is also greater than C. Let KLMN be constructed at once equal to the excess by which GB is greater than C and similar and similarly situated to D. [VI. 25] But D is similar to GB; therefore KM is also similar to GB. [VI. 21] Let, then, KL correspond to GE, and LM to GF. Now, since GB is equal to C, KM, therefore GB is greater than KM; therefore also GE is greater than KL, and GF than LM. Let GO be made equal to KL, and GP equal to LM; and let the parallelogram OGPQ be completed; therefore it is equal and similar to KM. Therefore GQ is also similar to GB; [VI. 21] therefore GQ is about the same diameter with GB. [VI. 26] Let GQB be their diameter, and let the figure be described. Then, since BG is equal to C, KM, and in them GQ is equal to KM, therefore the remainder, the gnomon UWV, is equal to the remainder C. And, since PR is equal to OS, let QB be added to each; therefore the whole PB is equal to the whole OB. But OB is equal to TE, since the side AE is also equal to the side EB; [I. 36] therefore TE is also equal to PB. Let OS be added to each; therefore the whole TS is equal to the whole, the gnomon VWU. But the gnomon VWU was proved equal to C; therefore TS is also equal to C.

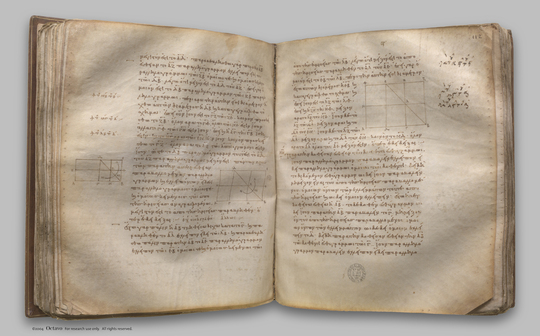

index prev next | digilib folio 116
